The Team Fortress 2 branch (also referred as Source 2013 Multiplayer v2, or TF2 branch for short) is a newer version of
Source 2013 Multiplayer, developed from updates to
Team Fortress 2. Half-Life 2: Deathmatch was also upgraded to this branch after the 20th Anniversary update. All remaining Source 2013 Multiplayer games (
,
,
and
SDK) were upgraded to this branch on 18 February 2025.
The branch also adds new features, including one from Half-Life 2 20th Anniversary Update, Left 4 Dead engine branch and later branches.
Features
New since the Source 2013 Multiplayer branch is:
64-bit binaries (also in
)
- Allows the game to access more than 4GB RAM and have slightly better performance. Additionally, tools such as Hammer, map compilers (VBSP, VVIS, VRAD), etc... also have 64-bit binaries.
Note:64-bit is not available on Mac.
- VScript (also in
)
- A powerful new scripting system primarily using
Squirrel. Third-party games may have different VScript implementation.
- WebM video playback (also in
)
- Used for game intros or cutscenes in some games. Replaces Bink video. WebM allows smaller file sizes without significant degradation in video quality.
- Vulkan renderer (also in
)
- A low-overhead, cross-platform graphics API, successor to OpenGL.
- First introduced in 2022 with the release of Steam Deck update for Half-Life 2 and Portal, and later added to Team Fortress 2 during the 64-bit update. Portal with RTX also uses Vulkan as part of the RTX Remix runtime. Using DXVK, a library used to translate Direct3D calls to Vulkan. This is disabled by default, but can be enabled in supported games by passing -vulkan into the game's launch options.
- VGUI High
DPI support (also in
20th)
- VGUI elements are now properly scalable on higher resolutions such as 4K (3840x2160).
- Steam Networking
- Allows self-hosting using Steam Datagram Relay, meaning users can easily create joinable servers without port forwarding.
Bicubic lightmap filtering (also in
20th
)
- Introduced in 2024, bicubic filtering is used on lightmaps when r_lightmap_bicubic is enabled, smoothing out aliasing caused by the lower resolution of lightmaps. It can be also enabled by setting the Shader detail to "Very High".

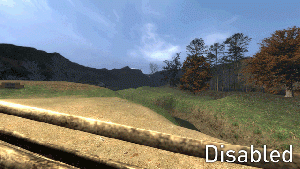

- Radial fog (also in
20th)
- Unlike planar-based fog, radial fog does not strengthen or weaken the apparent amount of fog in a particular spot when you rotate the camera.
- You can either use radial fog or planar-based fog by changing env_fog_controller "Use Radial Fog (fogRadial)" KeyValues.
- Texture streaming (also in
)
- Reduces system RAM and graphics card VRAM usage by streaming textures as needed instead of loading them all when loading the map.
- Swaying trees (also in
)
- Introduced in Jungle Inferno update. A material parameter that gives the effect of trees swaying in the wind.
- Removal of Miles Sound System middleware
- Uses open-source
minimp3 for MP3 playback instead. Files related to Miles Sound System will remain on the game's
bin
folder, but left unused.
- Numerous security fixes
- See GitHub post.
Availability
Source code (game, tools) for this branch is available on GitHub.
Valve
- 2004
Counter-Strike: Source (formerly
,
,
,
)
- 2004
Half-Life 2: Deathmatch (formerly
,
,
,
)
- 2005
Half-Life Deathmatch: Source (formerly
,
,
)
- 2005
Day of Defeat: Source (formerly
,
,
,
)
- 2007
Team Fortress 2 (formerly
,
,
)
- 2014
Source SDK Base 2013 - Multiplayer (formerly
; Click to Install)
Note:Mods built on
Source SDK Base 2013 - Multiplayer prior to the upgrade to the Team Fortress 2 branch may not work properly if the mod is launched with updated SDK Base 2013 MP, so if you want to use legacy version of Source SDK Base 2013 - Multiplayer to play older mods (or use older tools), follow the instructions:
- Open Steam, go to Source SDK 2013 Multiplayer, right click Properties
- A window will open. Go to "Betas", select previous2021 beta branch.
- Steam will automatically re-download the files. Once it's done, run Source SDK Base 2013 MP as normal, or use it's tools.
