This article's documentation is for anything that uses the Source engine. Click here for more information.

weapon_cubemap

From Valve Developer Community
Jump to navigation Jump to search
English (en)한국어 (ko)Translate (Translate)
This entity is not in the FGD by default.
See below for instructions on making it available.

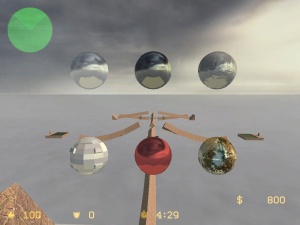

weapon_cubemap in Half-Life 2 Half-Life 2.
Class hierarchy
CWeaponCubemap
CBaseCombatWeapon
CBaseAnimating
CBaseEntity
weapon_cubemap.cpp

weapon_cubemap is an entity available in Half-Life 2 series Half-Life 2 series, Portal series Portal series, and Portal 2: Community Edition Portal 2: Community Edition.

This entity gives the player a set of spheres 🖿models/shadertest/envballs.mdl, each with different reflective surfaces. It is used for checking cubemaps.

The commands to get it (typed into the console) are either impulse 81 or give weapon_cubemap. These commands are considered cheats, meaning that sv_cheats must be enabled for them to work.
You can switch to this weapon (after having received it) by typing use weapon_cubemap.

Tip.pngTip:To equip and draw the weapon for quick work, developers can bind this command to a specific key. For instance, typing bind "X" "impulse 81"; "use weapon_cubemap" will bind it to the X key. (You may need to press it twice the first time you use it in a map.)
Note.pngNote:Portal 2 does have it in a working condition but needs the model from another game

Workarounds

If your game does not have weapon_cubemap, rifle scopes could be used, such as the hunting rifle in Left 4 Dead 2 Left 4 Dead 2, the AWP in Counter-Strike: Global Offensive CS:GO or the crossbow in Black Mesa Black Mesa, as alternatives.
Community mods have been made to implement it into games that do not support it natively:

  • Team Fortress 2 Team Fortress 2: Create a VScript file named 🖿weapon_cubemap.nut inside 🖿tf/scripts/vscripts/, paste in the following code and then type script_execute weapon_cubemap and switch to melee.
local cubemap = "models/shadertest/envballs.mdl"
PrecacheModel(cubemap)
for (local i = 0; i < 8; i++)
{
    local weapon = NetProps.GetPropEntityArray(player, "m_hMyWeapons", i)
    if (weapon && weapon.GetSlot() == 2)
		weapon.SetCustomViewModel(cubemap)
}

FGD Code

@PointClass base(Weapon,Targetname, Parentname) studio("models/shadertest/envballs.mdl") = weapon_cubemap : "Cubemap preview spheres"[]
