grenade_mortar_small / grenade_mortar_large

From Valve Developer Community
(Redirected from Grenade mortar)
Jump to navigation Jump to search
Class hierarchy
CGrenade_Mortar_Large
CBlackMesaBaseGrenade
CBlackMesaBaseDetonator
CBaseAnimating
CBaseEntity
Class hierarchy
CGrenade_Mortar_Small
CBlackMesaBaseGrenade
CBlackMesaBaseDetonator
CBaseAnimating
CBaseEntity
This entity is not in the FGD by default.
It should not be put directly in a map because it doesn't work properly in Steam versions of the game if not spawned via env_mortar_launcher. It's possible to use it without the entity in mod version of the game, but still easier to launch it with the entity.

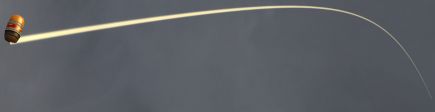

Grenade mortar image.jpg

grenade_mortar_small and grenade_mortar_large are model entities available in Black Mesa Black Mesa. Both are grenade entities that used by env_mortar_launcher. Both are mortar shells that was used as an airstrike bomb. The only difference is between these entities is the particle effects from explosion, they are identical in other stuff.

Example of the explosion effects for both versions.
AltNames.pngAltNames:The grenade_mortar_small entity is also tied to grenade_mortar.
Icon-Bug.pngBug:This entity is not functional if created via ent_create grenade_mortar_small in Steam versions of the game.
Icon-Bug.pngBug:It bounce of dynamic (not physics) objects, such as prop_dynamic. Usually happens with objects that have a dynamic collision, or objects that are in motion.
Example.


(not in Black Mesa (mod))
Note.pngNote:Used model from MP5's grenade model for some reason.
Note.pngNote:It explodes if hits skybox in the mod version. In Steam versions, it just disappears.

Inputs

OverrideDamage <floatRedirectInput/float>
Fired by env_mortar_launcher if not used -1 value. This input overrides damage from the shell.
OverrideDamageRadius <floatRedirectInput/float>
Fired by env_mortar_launcher if not used -1 value. This input overrides damage radius from the shell.

Dedicated ConVars

Black Mesa Black Mesa: Definitive Edition

Cvar/Command Parameters or default value Descriptor Effect
sk_grenade_mortar_dmg 15 Float Amount of damage from the shell.
sk_grenade_mortar_range 400 Float Range of explosion from the shell.
sk_grenade_mortar_shakeduration 1.5 Float Duration of camera shake.
sk_grenade_mortar_shakeradius 640 Float Radius in which player will get the shake.
sk_grenade_mortar_gravity 400 Float Speed of the shell.
Icon-Bug.pngBug:Starting from 875, your shells can disappear. Max value depends on Path Start property from env_mortar_launcher.
sk_grenade_mortar_max_speed 2000 Float Max possible speed. Doesn't seems to affect anything.
sk_grenade_mortar_track_drag 0.8 Float Doesn't seems to affect anything.
sk_grenade_mortar_track_acceleration 400 Float Doesn't seems to affect anything.

Black Mesa (mod) Black Mesa (mod)

Cvar/Command Parameters or default value Descriptor Effect
sk_grenade_mortar_dmg 15 Float Amount of damage from the shell.
sk_grenade_mortar_range 400 Float Range of explosion from the shell.
sk_grenade_mortar_shakeduration 1.5 Float Duration of camera shake.
sk_grenade_mortar_shakeradius 640 Float Radius in which player will get the shake.

See Also
