env_fire

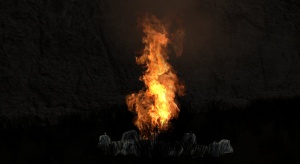

Example of env_fire.

env_fire is a point entity available in all Source games. It handles a single flame (_firesmoke) at its origin. The flame causes heat "damage" to other env_fire entities around it, and will eventually ignite them, causing the fire to spread.

Note:The fire may fall through the world on spawn if placed exactly at ground level. Place it a little bit above the ground to fix this.

Bug: This entity doesn't work in Portal. Please see Portal:Env Fire fix for more details

Bug: While still available, it does not have particle effects in Team Fortress 2. This method is recommended instead.

In code, it is represented by class CFire, defined in fire.cpp.

ConVars/Commands

ConVar/Command	Parameters or default value	Descriptor	Effect
fire_maxabsorb	50	Arbitrary number (float)	Upper limit for how much heat "damage" a fire can take before the damage begins to force the flame to grow. Heat is usually absorbed from other env_fires.
fire_absorbrate	3	Multiplier (float)	Scalar for how fast fires can absorb heat.
fire_extscale	12	Multiplier (float)	Effectively only a scalar for the Strength of an env_extinguisherjet.
fire_extabsorb	5	Multiplier (float)	To do: Effect description.
fire_heatscale	1.0	Multiplier (float)	Scalar for how much damage a fire can do (both to fires and other objects such as the player).
fire_incomingheatscale	0.1	Multiplier (float)	Scalar for how much heat a fire can take from other fires if it is already ignited.
fire_dmgscale	0.1	Multiplier (float)	To do: Effect description.
fire_dmgbase	1	Health Amount	Base damage that a fire does to objects such as the player. This amount multiplies depending on the user's difficulty setting: Easy: x1 Normal: x2 Hard: x3
fire_growthrate	1.0	Multiplier (float)	Scalar for how much heat a fire can passively add to itself at once. Thinking interval is 0.1 seconds.
fire_dmginterval	1.0	Seconds	Once a fire has damaged something, it will wait this long before it can damage anything again.

Flags

• 1: Infinite Duration

Note:In Alien Swarm, an env_fire cannot be extinguished with the fire extinguisher unless Infinite Duration is set.

• 2: Smokeless
• 4: Start On
• 8: Start Full
• 16: Don't drop
• 32: No glow
• 128: Delete when out
• 256: Visible from above
• 256: No sound (New with Alien Swarm)
• 512: No ignite sound (New with Alien Swarm)
• 1024: No fueling once lit (New with Alien Swarm)
• 2048: Fast burn think (New with Alien Swarm)

Keyvalues

Duration (health) <integer>

Amount of time the fire will burn.

Size (firesize) <integer>

Height (in world units) of the flame.

Attack (fireattack) <integer>

Amount of time the fire takes to grow to full strength.

Type (firetype) <choices>

Either Natural or Plasma. Natural is a general all purpose flame, like a wood fire.

• 0: Natural
• 1: Plasma (Effects for this type do not exist!)

Ignition Point (ignitionpoint) <float>

Amount of heat 'damage' to take before this flame should ignite.

Damage Scale (damagescale) <float>

Multiplier of the burn damage done by the flame.

Light Color (LightColor) <color255> (New with Alien Swarm)

Color of dynamic light for this fire.

Light Radius Scale (LightRadiusScale) <float> (New with Alien Swarm)

Multiplier for the glow radius.

Light Brightness (LightBrightness) <integer> (New with Alien Swarm)

Integer exponent for the glow brightness.

Loop sound (LoopSound) <sound> (New with Alien Swarm)

Looping sound to play while this fire is burning.

Ignite sound (IgniteSound) <sound> (New with Alien Swarm)

One shot sound to play when the fire starts.

EnableDisable:

Start Disabled (StartDisabled) <boolean>

Stay dormant until activated (probably with the Enable input).

Base:

Classname (classname) <string>

The classname defines the type of entity. Classnames can be changed using AddOutput, which will influence how the engine deals with the entity in certain circumstances.

Name (targetname) <string>

The name that other entities refer to this entity by.

Global Entity Name (globalname) <string>

Name by which this entity is linked to another entity in a different map. When the player transitions to a new map, entities in the new map with globalnames matching entities in the previous map will have the previous map's state copied over their state.

Parent (parentname) <targetname>

Specifies a movement parent. An entity will maintain its initial offset from its parent. An attachment point can be added to the end of the name, separated by a comma. Every entity can be parented, even point entities. Entities which are parented will be forced to transition to the next map, such as from a trigger_transition. Some entities which aren't intended to be parented may not function correctly. phys_constraint can be used as a workaround to parenting.

Origin (X Y Z) (origin) <coordinates>

The position of this entity's center in the world. Rotating entities typically rotate around their origin.

Pitch Yaw Roll (X Y Z) (angles) <angle>

This entity's orientation in the world. Pitch is rotation around the Y axis, yaw is the rotation around the Z axis, roll is the rotation around the X axis.

Note:This works on brush entities, although Hammer doesn't show the new angles.

Flags (spawnflags) <integer>

Toggles features of an entity, its specific number is determined by the combination of flags added.

Response Contexts (ResponseContext) <string>

Pre-defined response system contexts for this entity. Format is key:value,key:value,.... Contexts may be filtered.

Effects (effects) <integer> !FGD

Combination of effect flags to use.

Local Time (ltime) <float> !FGD

The local time of the entity, independent of the global clock. Used mainly for physics calculations.

Next Think (nextthink) <float> !FGD

Amount of time before the entity thinks again.

Hammer ID (hammerid) <integer> !FGD

The entity's Hammer ID. Mainly used by plugins and debugging commands, such as ent_keyvalue. Can be manually assigned with the "hammerid" or "id" keyvalue. Entities spawned at run-time are not assigned any Hammer ID.

Disable for Xbox 360 (disableX360) <boolean> (New with Left 4 Dead 2) !FGD

If Yes, disables this entity on the Xbox 360 version of Source.

Entity Scripts (vscripts) <scriptlist> (New with Left 4 Dead 2)

Space delimited list of VScript files (without file extension) that are executed after all entities have spawned. The scripts are all executed in the same script scope, later ones overwriting any identical variables and functions.

Script think function (thinkfunction) <string> (New with Left 4 Dead 2)

Name of a function in this entity's script which will be called automatically every 100 milliseconds (ten times a second) for the duration of the script. It can be used to create timers or to simulate autonomous behavior. The return value (if present) will set the time until the next call. Try to avoid expensive operations in this function, as it may cause performance problems.

Lag Compensation (LagCompensate) <boolean> (New with Left 4 Dead 2) !FGD

Set to Yes to lag compensate this entity. Should be used very sparingly!

Is Automatic-Aim Target (is_autoaim_target) <boolean> (New with Counter-Strike: Global Offensive) !FGD

If set to 1, this entity will slow down aiming movement for consoles and joystick controllers when the entity is under the crosshairs.

Inputs

StartFire

Start the fire.

Extinguish <float>

Puts out the fire permanently in the number of seconds specified.

ExtinguishTemporary <float>

Puts out the fire temporarily in the number of seconds specified.

EnableDisable:

Enable

Disable

Enable/disable this entity from performing its task. It might also disappear from view.

Base:

Kill

Removes this entity and any entities parented to it from the world.

KillHierarchy

Functions the same as Kill, although this entity and any entities parented to it are killed on the same frame, being marginally faster than Kill.

SetParent <string>

Move with this entity. See Entity Hierarchy (parenting).

SetParentAttachment <string>

Change this entity to attach to a specific attachment point on its parent. The entity will teleport so that the position of its root bone matches that of the attachment. Entities must be parented before being sent this input.

SetParentAttachmentMaintainOffset <string>

As above, but without teleporting. The entity retains its position relative to the attachment at the time of the input being received.

ClearParent

Removes this entity from the the movement hierarchy, leaving it free to move independently.

AddOutput <string>

Evaluates a keyvalue/output on this entity.
Format: <key> <value>
Format: <output name> <targetname>:<inputname>:<parameter>:<delay>:<max times to fire, -1 means infinite>

FireUser1 to FireUser4

Fire the OnUser outputs; see User Inputs and Outputs.

Use  !FGD

Same as a player invoking +use; may not do anything. Can also be invoked by creating an output that does not specify an input.
This input is not included in Valve's FGDs.

DispatchEffect <string> !FGD

Dispatches a special effect from the entity's origin. Removed and replaced entirely by the particle system since .

DispatchResponse <string> !FGD

Dispatches a response to the entity. See Response and Concept.

AddContext <string>

Adds to the entity's list of response contexts. Format is <key>:<value>.

RemoveContext <string>

Remove a context from this entity's list. The name should match the key of an existing context.

ClearContext <string>

Removes all contexts from this entity's list.

RunScriptFile <script> (New with Left 4 Dead 2)

Execute a VScript file from disk, without file extension. The script contents are merged with the script scope of the receiving entity.

RunScriptCode <string> (New with Left 4 Dead 2)

Execute a string of VScript source code in the scope of the entity receiving the input. String quotation may be needed when fired via console.

Bug:  In , the code is executed in the script scope of the entity that fires the output, not the one receiving the input.

Warning: Never try to pass string parameters to a script function with this input. It will corrupt the VMF structure because of the nested quotation marks, which then must be removed manually with a text editor.

CallScriptFunction <string> (New with Left 4 Dead 2) !FGD

Execute a VScript function in the scope of the receiving entity.

SetLocalOrigin <coordinates> (New with Alien Swarm) !FGD

Send this entity to a spot in the map. If the entity is parented to something, it will be offset from the parent by this amount.

SetLocalAngles <angles> (New with Alien Swarm) !FGD

Set this entity's angles.

Outputs

OnIgnited

Fires when the fire is first ignited.

OnExtinguished

Fires when the fire is fully extinguished.

Base:

OnUser1 to OnUser4

These outputs each fire in response to the firing of the like-numbered FireUser1 to FireUser4 Input; see User Inputs and Outputs.

OnKilled  (Only in the Left 4 Dead series)

This output fires when the entity is killed and removed from the game.
