Env lensflare

env_lensflare is an e0 available in Black Mesa. It creates a  lens flare that can be used to represent bright light sources.

An Official Black Mesa Lens Flare GIF From The ModDB Page.

← Black Mesa Level Creation

Keyvalues

Name (targetname) <string>

The name that other entities refer to this entity by.

Parent (parentname) <targetname>

The name of this entity's parent in the movement hierarchy. Entities with parents move with their parent.

Pitch Yaw Roll (Y Z X) (angles) <angle>

This entity's orientation in the world. Pitch is rotation around the Y axis, yaw is the rotation around the Z axis, roll is the rotation around the X axis.

File (FlareFile) <string>

Optional - file defining the lens flare. Note: Hammer's parameters overwrite the file's parameters.

Todo: Document what kind of file and what type.

Distance attenuation (FlareAttenuation) <float>

Distance where lensflare will be invisible. 0.0 if not attenuation with distance

Flare Type (FlareType) <choices>

Normal: normal lens flare (Pitch,Yaw,Roll not used) ------ Sun Flare: set the same Pitch,Yaw,Roll that the one from the sun light_env. That will define the position of the sun. the actual position of this entity is not used.

• 0: Normal
• 1: Sun Flare

Examples

Flare Type - Normal Flare Type - Sun Flare

Warning:Never place more then 4 lens flares with sun flare type, otherwise game will crash on map launch with this message.

If you'll try to place more then 4.

Appearance (FlareStyle) <choices>

Template:Light appearances

Size of Glow Proxy Geometry. (GlowProxySize) <float>

Size of the glow to be rendered for visibility testing. Must be larger than the distance from the sprite center to empty space. So if this glow is inside geometry (like a light bulb), set this value to be bigger than the bulb's radius. Any time a sphere of this radius would be visible (poking through any nearby geometry), the glow will be rendered.

Note: - Richard's note : I noticed that value more than ~100 wont work correctly.

Flare 01 texture (Flare01_texture) to Flare 20 texture (Flare20_texture) <string>

image of the lens - if empty the flare doesn't exist

Flare 01 parameters (Flare01_params) to Flare 20 parameters (Flare20_params) <string>

parameters - example : DISK 1.0 10 10

See below for more details.

Flare 01 intensity (Flare01_intensity) to Flare 20 intensity (Flare20_intensity) <vector>

intensity of the flare - example : 1.0 1.0 1.0

Sets scale of intensity in three independent numbers, used number depends on the player's camera deviation.

First number sets when player look at entity center.

Second number sets when player camera have slight deviation.

Third number sets when player look far away from entity center.

Examples

FINST1ALT.gif Flare 01 intensity - 9 .5 .5 FINST2.gif Flare 01 intensity - .5 9 .5 FINST3.gif Flare 01 intensity - .5 .5 9

Flare 01 sizes (Flare01_sizes) to Flare 20 sizes (Flare20_sizes) <vector>

intensity of the flare - example : 1.0 1.0 1.0

Sets scale of size in three independent numbers, used number depends on the player's camera deviation.

First number sets when player look at entity center.

Second number sets when player camera have slight deviation.

Third number sets when player look far away from entity center.

Note:Never work with BOW function.

Examples

FSCALE1.gif Flare 01 sizes - 50 10 10 FSCALE2.gif Flare 01 sizes - 10 50 10 FSCALE3.gif Flare 01 sizes - 10 10 50

Flare 01 color (Flare01_color) to Flare 20 color (Flare20_color) <color255>

color factor of the texture - example : 255 255 255

Inputs

ColorRedValue

Sets the red color channel's value (0 - 255).

Note:Unlike env_sprite do nothing.

ColorGreenValue

Sets the green color channel's value (0 - 255).

Note:Unlike env_sprite do nothing.

ColorBlueValue

Sets the blue color channel's value (0 - 255).

Note:Unlike env_sprite do nothing.

SetScale

Deprecated.
Set the lensflare's scale (0 - 8.0).

HideLensFlare

Hide the lensflare. Won't be drawn until the 'ShowLensFlare' input is received.

ShowLensFlare

Show the lensflare.

ToggleLensFlare

Toggle the lensflare between hidden and shown.

Flags

Start on : [1]

Play once : [2]

Lens Flare Properties

An individual env_lensflare can support up to 20 flares. Each flare have different properties that can be customized.

Texture

The texture property sets the material used by the flare. It is a path to a VMT file relative to the materials folder, without the file extension. Common flare materials are located in the effects/lensflare/ folder. Any material can be used as a lens flare, but flare materials should preferably use UnlitGeneric and be $additive.

Parameters

The parameters property controls the appearance of the flare. Parameters take the following form: TYPE parameters

The following lens flare types can be used:

DISK

A screen space flare that gets stronger when the player looks directly at the env_lensflare, and weaker as the player looks away. It takes three parameters.

The first number - how strong a image will move away from screen center. With 1 it will attached to screen center. If 0 - will stay at env_lensflare center. Negative number will mirror effect that do positive number.

The second number - distort a image along the axis Y. Doesn't work with negative numbers.

The third number - distort a image along the axis X. Doesn't work with negative numbers.

Examples

DISK 0 20 20 DISK 2 5 20 DISK .4 40 20

BOW

An effect that uses an image and distorts it between center of screen and env_lensflare center. It takes one parameter. Doesn't work with negative numbers.

The first number - change a picture scale.

Examples

BOW 1 BOW .2 BOW 5

CLA

This effect looks like copy of DISK. It use same parameters.

Examples

DISK 0 20 20 DISK 2 5 20 DISK .4 40 20

DISKH

An effect that uses an image and moves it along the X axis. It takes four parameter.

The first number - how strong the image will move away from screen center along the axis X. If number is 0 - it will stand at env_lensflare center. With 1 it will attached to screen center. Negative number will mirror effect that do positive number.

The second number - distort the image along the axis X. Doesn't work with negative numbers.

The third number - distort the image along the axis Y. Doesn't work with negative numbers.

The fourth number - change position of a image along the axis Y. If positive number - be higher, if negative number - be lower.

Examples

DISKH 2 5 2 5 DISKH -2 2 5 -5

RAY

An effect that uses an image and scale it. It takes two parameter. Doesn't work with negative numbers.

The first number - distort the image along the axis Y.

The second number - distort the image along the axis X and Z.

Examples

RAY 20 60 RAY 70 60

Issues

Lens flares render behind viewmodel and not vice versa

Not a bug, but this is not what you expect from real life, was fixed in Half-Life 2: Inhuman.

File:RENDERUNDERVIEWMODELBUG.gif Black Mesa

File:INHUMANFLARE.gif Half-Life 2: Inhuman

Sun flare incorrect work with point_viewcontrol

Sun flare change position in sky when player move, this affects to what show point_viewcontrol when it's enabled. If you want to see in your background level sun flare - place player on needed position. If your point_viewcontrol moves - attach player to it.

File:PointViewControlFlareBug.gif Showcase of problem in background level of Black Mesa: Black Ops - Restored

User can disable lens flares and see defect

In graphics settings user can turn off all flares, keep in mind this to escape situations like in the picture. Add sprites or corresponding skins, paint sun on your skybox if don't plan to use newLight_Dir.

Option enabled. Dr. Rosenberg hold enabled flashlight, everything looks fine.

Option disabled. Dr. Rosenberg still hold enabled flashlight, but flashlight looks disabled in fact.

Lens flare incorrect work with func_monitor

func_monitor can display lens flares, but this work not like you can expect. Disable flares or replace them to sprites when player can see monitor.

What see player from camera position.

File:MONITORFLAREBUG.gif What happen in monitor.

3D Skybox buggy show flares

Don't use env_lensflare in your 3D skyboxes, this work very buggy.

File:3DSKYFLAREBUG.gif Example with rocket flare (the rocket is in 3D Skybox).

Sun flare render through 3D Skybox objects

Unlike env_sun sun flare render through any object pasted in 3D Skybox environment. Keep in mind this before you will create 3D Skybox.

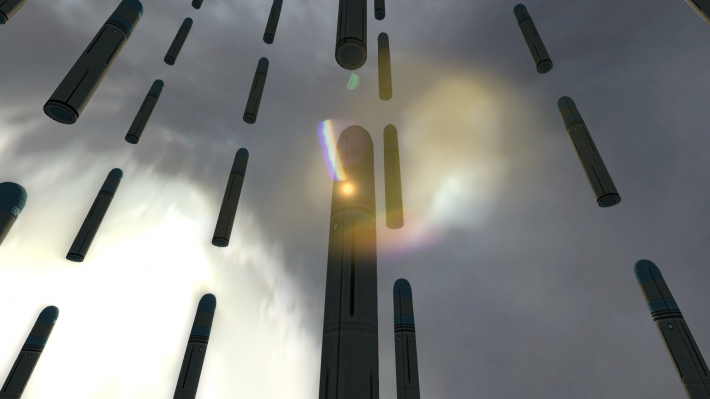

Clear example (the missiles is 3D Skybox objects)

In bs_c3m2b level from Black Mesa: Blue Shift. Here sun behind clif, so, player should not see it technically (this is what happen with env_sun here)

See Also

• newLight_Point
• newLight_Dir
• Lighting
• Adding Light
• Intermediate Lighting
• Advanced Lighting
• env_sprite
• BlackMesa XenEngine: Part2 – How a Frame is Rendered (page from Black Mesa developer about new graphics features)

Todo: May better describe functions.
