$lightwarptexture

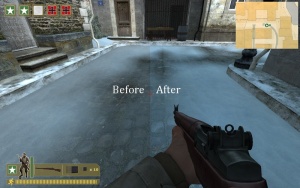

The technique was first used in Day of Defeat's snow maps, such as Kalt.

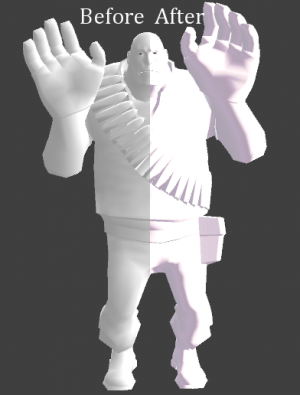

It is the cornerstone of TF2's illustrative character rendering.

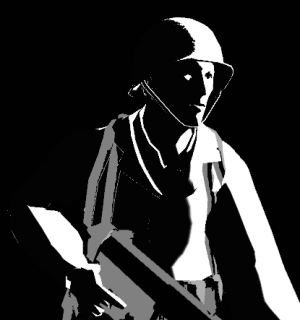

Posterised colour can be achieved, but lighting must be tightly controlled.

$lightwarptexture is a material parameter that tints texels depending on their brightness. It can be thought of as localised color correction. It requires at least DirectX 9.

Note:Models need a $bumpmap for $lightwarptexture to work properly on them.

Note:$lightwarptexture should NOT be used together with $halflambert, doing so will not make the lightwarps or the Half Lambertian work (if $halflambert is 0 you shouldn't worry.)

Lightwarp textures

A lightwarp texture is a one-dimensional strip of pixels. Dark texels will be tinted with the colour on the left-hand side, and bright texels with the colour on the right. 50% gray means no tint.

Examples

snow_warp

This is the lightwarp texture used in the DOD Source screen to the right. It is designed to add a subtle bluish tint to darker snow, without affecting brighter regions.

pyro_lightwarp

This is applied to all TF2 characters, not just Pyro. It creates the high-contrast shadows with red-tinged terminators typical of the illustrative art the game apes.

Posterised

This custom warp texture creates a posterised "line art" style. Enabling lightwarp alone isn't enough however: ambient lighting must be at 0 to make unlit areas black, and world lighting must become viewer-dependent to ensure that shadows are always cast.

Other possible uses of $lightwarptexture include toon shading, contrast enhancement and highlight softening.
