Hotspot texturing is a method to quickly apply textures to geometry by matching faces to predefined rectangles. This method is especially useful with texture maps consisting of trims and panels, and will allow you to automate a lot of the texture aligning process.

Example of a structure made with a hotspot texture

Valve used hotspot texturing extensively in the creation of Half-Life: Alyx to create modular geometry with bevelled edges. This feature has now been brought over to Source, inspired by the Source 2 implementation.

This feature is only available in Hammer++ and Strata Hammer.

Benefits

• Easy to author: The rectangles in the texture can be created in a consistent and seamless style.
• Improved performance: Since all the rectangles use the same material, they will only consume one draw call rather than multiple like with traditional textures.
• Saves file size and VRAM: Don't need multiple textures, it can be packed into one texture instead.
• Quick to apply: You can just select all faces and press Fit, and the result will be nearly perfect.

Authoring

1. Create a texture with rectangular regions. The rectangles can be any size, as long as they are axis aligned.

2. Create a .rect file. This is a plaintext file containing the list of rectangles. Place the .rect file beside your VMT/VTF.

Example file that has two rectangles. The origin (0, 0) is from the top left of the texture.

Rectangles
{
	rectangle
	{
		min		"0 0"
		max		"512 32"
	}
	rectangle
	{
		min		"512 0"
		max		"768 32"
	}
}

Tip: Region flags can be defined by adding flagname 1 inside a rectangle block.

The following flags work with Strata Hammer :

• rotate 1 Enables regions to be rotated to better match the target surface.
• reflect 1 Enables regions to be randomly horizontally flipped.
• alt 1 Marks this region as an alternate. When the Alt key is held, only alternate rects are chosen.

3. Specify the path to your .rect file in your VMT as %rectanglemap. The rect file is assumed to be in the materials folder.

Example:

LightmappedGeneric
{
	$basetexture  "hotspot/hotspot_test"
	%rectanglemap "hotspot/hotspot_test"
	$surfaceprop  "metal"
	$alphatest    1
}

Example

This is an example grate texture with hotspotting.

Download

Usage

With a hotspot-ready texture in Hammer, apply the texture and then press the Fit button. Hammer will automatically read the .rect file and apply the hotspotting.

Hammer will try choose the closest matching rectangle within a margin of error. If there are multiple matches for a rectangle, a random one is chosen. Pressing Fit will generate a new random result in this case.

Utilities

• XBLAH's Modding Tool

XBLAH's Modding Tool - Material Hotspot Editor.

Can create or edit material hotspot files (.rect). The editor shows a preview of the hotspots, and is integrated with the File Explorer to make it really easy to create the hotspots. See more.

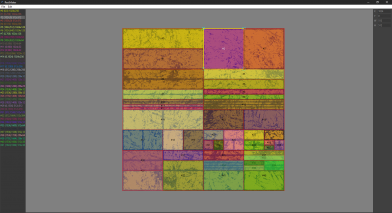

RectMaker - Creating and modifying .rect files

• RectMaker

GUI Editor for creation and modification of hotspot .rect files. Supports .vtf files, can save and open .rect files directly, and can open .vmt files.

• SourceHotspot Addon

Open-source Blender addon that can generate both .rect files and embedded hotspot resources from a mesh's UV map. Useful for porting DreamUV atlases!

See also

• More detailed article on hotspot texturing
• Strata specifications for embedded and textfile hotspots
