SurfaceGGX

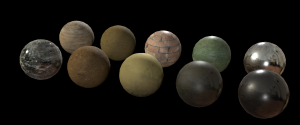

HLMV preview of SurfaceGGX shader from

SurfaceGGX is a Pixel shader available in Day of Infamy and Insurgency. It was first introduced in Day of Infamy and back ported to Insurgency. It supports PBR.

Bug:This shader won't receive light properly from env_projectedtextures like the player's flashlight, instead making the material appear pure black. If the player is allowed to use a flashlight, the best case scenario is to only use this shader on props in lit up areas. This shader applied to weapon view models is safe from this however. [todo tested in ?]

Note: $translucent does not include the blending inherent to other Valve shaders.

Examples

American character skin

SurfaceGGX
{
 	$basetexture models\player\american\american_flesh_01
 	$bumpmap models\player\american\american_flesh_01_normal
 	$phongexponenttexture models\player\american\american_flesh_01_exp
 	$detail vgui/white
 	$detailblendfactor 0
 	$detailscale 2
	$detailnormal models/player/skin_detail_nm
	$detailnormalblendfactor 0.5
	$subsurfacescattering 1
	$roughnessmultiplier 1.1
	$fuzz 1
	$fuzzmultiplier 0.2
	Proxies
	{
		CauseOfDeath
		{
			resultVar	$detail
		}
	}
}

American character clothes

SurfaceGGX
{
	$basetexture models\player\american\american_clothes
	$bumpmap models\player\american\american_clothes_normal
	$phongexponenttexture models\player\american\american_clothes_exp
	$detail vgui/white
	$detailblendfactor 0
	$detailscale 2
	$metal 1
	$roughnessmultiplier 1.15
	$fuzz 1
	$fuzzmultiplier 0.15
	Proxies
	{
		CauseOfDeath
		{
			resultVar	$detail
		}
		PlayerMaterialProxy
		{
		}
	}
}

Supported Parameters

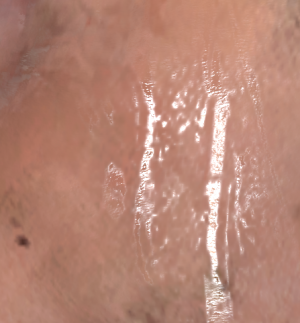

Skin $detailnormal on the German officer in

Day of Infamy

$basetexture <texture>: Diffuse texture.

$bumpmap <texture>: Normal mapping.
Bug:Animated bump maps aren't possible as the shader lacks the $bumpframe parameter.

$color <RGB matrix>: Color tinting.

$detail <texture>: Detail texturing.

$detailnormal <texture>: Bump as Detail texturing.

$detailnormalblendfactor <float>: Blending factor of $detailnormal.

$envmap <texture>: Specular reflections.

$alphatest <boolean>: Alpha testing.

$treeSway <boolean> (in all games since ) (also in ): Vertex manipulation to give the effect of trees swaying in the wind.

Metalness Parameters

$metal <boolean>: Enables use of the green channel of $phongexponenttexture.

$phongexponenttexture <texture>: Despite the name, this is a mask that defines the metalness of the material.

Specular/Gloss Parameters

$pbr <boolean>: Enables PBR reflections.

$masks <texture>: A mask for specular and glossiness. $pbr must be enabled to work.

Misc. Parameters

$fuzz <boolean>: Enables a asperity/fuzz scattering pass on the material.

$fuzzmultiplier <float>: Multiplier for the fuzz effect, default is 1.0.

$roughnessmultiplier <float>: Multiplier for roughness.
Todo: More detail, what is roughness?

$subsurfacescattering <boolean>: Enables Subsurface scattering on the material. Used for faces and skin.

$diffusionweights <RGB matrix>: Used by $subsurfacescattering.

$diffusionweights2 <RGB matrix>: Used by $subsurfacescattering.

$disableenvmap <boolean>: Enabling disables $envmap reflections. The shader will use $envmap by default even if it isn't specified, unless this is enabled.

Configuring the masks

$phongexponenttexture

The RGB channels of $phongexponenttexture is configured as follows:

Channel/Info	Data
Red	Glossiness (roughness inverted)
Green	Metalness inverted
Blue	Sub-surface scattering mask. Translucency/Fuzz mask (optional, used for characters and cloth on models).
Format	DXT1 for 3-channel, ATI2N for 2-channel

$metal must be set to 1 in order to use the green channel.

Note: $fuzz and $detailnormal use the inverse of the blue channel.

$masks

The RGB and alpha channels of $masks is configured as follows:

Channel/Info	Data
RGB	Specular tint
Alpha	Glossiness
Format	DXT5

$pbr must be enabled to make use of $masks.
