The title given to this article is incorrect due to technical limitations. The correct title is env_spark.

This point-based entity is available in all Source games.

[edit]

Entity Description

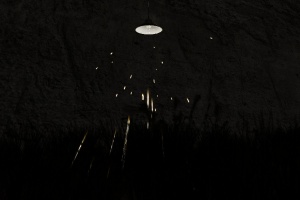

env_spark with directional, glowing medium sized sparks

An entity used to create sparks at its origin.

Note: By default, the sparks jump up a bit from the origin of the entity, so if you are attempting to create a situation like in the picture on the right, you must use the Directional flag and direct the entity downwards.

[edit]

Keyvalues

targetname <target_source>

Defines the name that other entities refer to this entity by.

hammerid [Episode Two Update]

<integer readonly> This id is used for debugging purposes in Hammer.

parentname <target_destination>

Specifies the targetname of this entity's Parent in a movement hierarchy. Child entities move with their Parent.

angles <angle>

Pitch Yaw Roll (Y Z X)

This entity's angular orientation in the world (also used for angular effect entities).

MaxDelay

<integer> The longest delay between sparks (in seconds).

Magnitude

<integer> The size of the sparks. Feel free to try other values than the following:

Literal Value	Description
1	Small
2	Medium
5	Large
8	Huge

TrailLength

<choices> Spark Trail Length

Literal Value	Description
1	Short
2	Medium
3	Long

[edit]

Flags

64 : Start ON
128 : Glow
256 : Silent
512 : Directional

[edit]

Inputs

Kill

Removes this entity from the world.

KillHierarchy

Removes this entity and all its children from the world.

AddOutput <string>

Evaluates a keyvalue/output on this entity. It can be potentially very dangerous, use with care.

Format: <key> <value>

Format: <output name> <targetname>:<inputname>:<parameter>:<delay>:<max times to fire (-1 == infinite)>

FireUser1-4

Causes this entity's OnUser1-4 outputs to be fired. See User Inputs and Outputs.

SetParent <target_destination>

Changes the entity's parent in the movement hierarchy.

SetParentAttachment <string>

Change this entity to attach to a specific attachment point on its parent. Entities must be parented before being sent this input. The parameter passed in should be the name of the attachment.

SetParentAttachmentMaintainOffset <string> [Episode One Update]

Change this entity to attach to a specific attachment point on it's parent. Entities must be parented before being sent this input. The parameter passed in should be the name of the attachment. The entity will maintain it's position relative to the Parent's Origin and Angles at the time it is attached.
